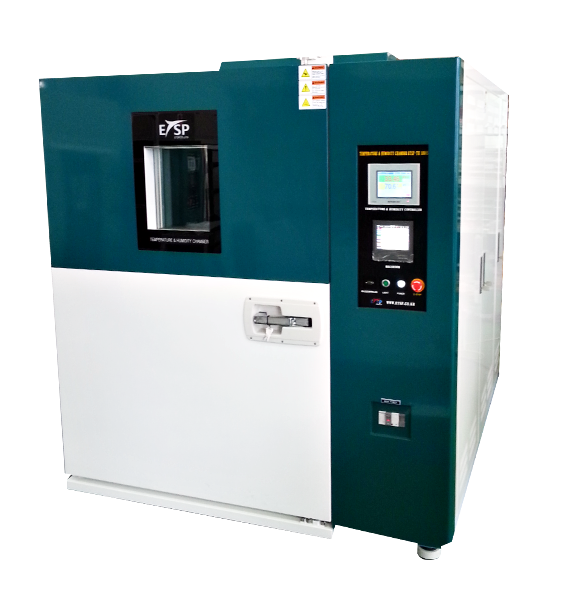

ETSP-TH series are climatic (temperature and humidity control) version chamber for durability or operating status of parts and products in extreme conditions.

Solved noise, bad humidity control and condensation, slow temperature/humidity variations, unbalanced air distribution inside chamber.

General Features

• Slient compressors using ecologically friendly refrigerants.
• Air temperature variation and quick adaptation of specimens to it
• Friendly, flexible, up-to date control and management systems.
• Allows easy servicing and upgrades.
• network connection of several chambers to a single “master” control unit allowing centralized supervision both in local and remote mode.

Technical Features

Temperature range	-40 ℃ ~ +180 ℃ (single stage refrigeration system) -70 ℃ ~ +180 ℃ (cascade refrigeration system)
Temperature accuracy	Less than ± 0.1 ℃
Temperature stability	Less than ± 0.5 ℃ at steady state conditions
Temperature uniformity	Less than ±1 ℃ of setpoint(Less than ±0.1 ℃ at 100 ℃
Heat-up rate	0.5 ~ 5 ℃/min
Cooling rate	0.5 ~ 5 ℃/min
Humidity range	20% ~ 98% RH(10% ~ 98% RH is an optional spec)
Humidity stability	Less than ±1.5% RH at steady state conditions without heat dissipation in time
Humidity uniformity	Less than ±3.0% RH
Condending	Air cooled or water cooled type
Input power requirements	220V/380V, 50Hz/60Hz, 1Ph/3Ph
